Enabling tracing with a central collector

Introduction

This guide outlines the steps to enable tracing in Istio and Kuadrant components (Authorino, Limitador, and wasm-shim), directing traces to a central collector for improved observability and troubleshooting. We'll also explore a typical troubleshooting flow using traces and logs.

Prerequisites

  • A Kubernetes cluster with Istio and Kuadrant installed.
  • A trace collector (e.g., Jaeger or Tempo) configured to support OpenTelemetry (OTel).

Configuration Steps

Istio Tracing Configuration

Enable tracing in Istio by using the Telemetry API. Depending on your method for installing Istio, you will need to configure a tracing extensionProvider in your MeshConfig, Istio or IstioOperator resource as well. Here is an example Telemetry and Istio config to sample 100% of requests, if using the Istio Sail Operator.

apiVersion: telemetry.istio.io/v1alpha1
kind: Telemetry
metadata:
  name: mesh-default
  namespace: gateway-system
spec:
  tracing:

  - providers:
    - name: jaeger-collector
    randomSamplingPercentage: 100
---
apiVersion: operator.istio.io/v1alpha1
kind: Istio
metadata:
  name: default
spec:
  namespace: gateway-system
  values:
    meshConfig:
      defaultConfig:
        tracing: {}
      enableTracing: true
      extensionProviders:
      - name: jaeger-collector
        opentelemetry:
          port: 4317
          service: jaeger-collector.jaeger.svc.cluster.local

Important:

The OpenTelemetry collector protocol should be explicitly set in the service port name or appProtocol fields as per the Istio documentation. For example, when using gRPC, the port name should begin with grpc- or the appProtocol should be grpc.

Kuadrant Tracing Configuration

Kuadrant components (Authorino, Limitador, and Wasm-shim) have request tracing capabilities. Configure tracing centrally via the Kuadrant CR to automatically propagate the configuration to all components. Ensure the collector is the same one that Istio is sending traces so that they can be correlated later.

Kuadrant CR Configuration

Configure tracing centrally in the Kuadrant CR. This configuration will be automatically propagated to:

  • Authorino (Auth service - authentication decisions)
  • Limitador (Rate limiting service - rate limit checks)
  • Wasm-shim (Envoy WebAssembly filter - gateway-level tracing)
apiVersion: kuadrant.io/v1beta1
kind: Kuadrant
metadata:
  name: kuadrant
  namespace: kuadrant-system
spec:
  observability:
    dataPlane:
      defaultLevels:

        - debug: "true"  # Enable DEBUG level trace filtering
      httpHeaderIdentifier: x-request-id
    tracing:
      defaultEndpoint: rpc://jaeger-collector.jaeger.svc.cluster.local:4317
      insecure: true

Tracing Configuration Fields:

  • defaultEndpoint: The URL of the tracing collector backend (OTLP endpoint). Supported protocols:
  • rpc:// for gRPC OTLP (port 4317)
  • http:// for HTTP OTLP (port 4318)
  • insecure: Set to true to skip TLS certificate verification (useful for development environments).

Important: Point to the collector service (e.g., jaeger-collector), not the query service. The collector receives traces from your applications, while the query service is only for viewing traces in the UI.

Once applied, the Authorino and Limitador components will be redeployed with tracing enabled.

Data Plane Configuration Fields:

  • defaultLevels: Controls the OpenTelemetry trace filtering level for the wasm-shim. This determines which trace spans are exported to your tracing collector.
  • Supported levels (highest to lowest verbosity): debug, info, warn, error
  • Current implementation (MVP): Set to "true" to enable that level (e.g., debug: "true")
  • Future: Will support CEL expressions for dynamic request-time evaluation
  • Default: WARN if not specified

  • Priority: DEBUG > INFO > WARN > ERROR (highest level set wins)

  • httpHeaderIdentifier: Specifies the HTTP header name used to correlate requests in traces (e.g., x-request-id)

Important - Understanding what defaultLevels controls:

The defaultLevels configuration controls trace span filtering sent to your observability backend (Jaeger, Tempo, etc.), not the verbosity of logs appearing in gateway pod output.

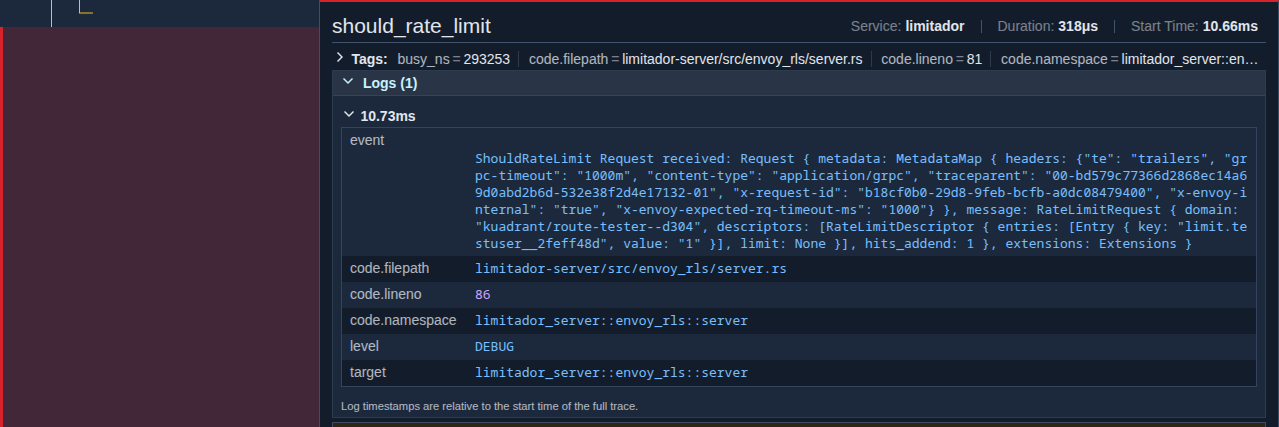

  • To view traces: Configure defaultLevels in the Kuadrant CR and view traces in your tracing UI (Jaeger/Grafana)
  • To see debug logs in gateway pods: Configure Envoy's log level separately (see Enabling Gateway Debug Logs in the troubleshooting section)

Direct Configuration (Advanced)

For advanced use cases, you can configure tracing directly in the Authorino or Limitador CRs:

apiVersion: operator.authorino.kuadrant.io/v1beta1
kind: Authorino
metadata:
  name: authorino
spec:
  tracing:
    endpoint: rpc://authorino-collector:4317
    insecure: true
---
apiVersion: limitador.kuadrant.io/v1alpha1
kind: Limitador
metadata:
  name: limitador
spec:
  tracing:
    endpoint: rpc://limitador-collector:4317

Important: When tracing is configured directly in Authorino or Limitador CRs, those settings take precedence over the Kuadrant CR configuration. The Kuadrant operator will cede ownership of the tracing field to you, allowing full control over component-specific tracing endpoints. This is useful when you need different collectors for different components.

Configuration Precedence

The tracing configuration follows this precedence order:

  1. Component-specific configuration (Authorino/Limitador CR) - highest priority
  2. Centralized configuration (Kuadrant CR) - applies when component CRs don't specify tracing

If you set tracing in the Kuadrant CR and later configure it directly in an Authorino or Limitador CR, the component-specific configuration will take precedence, and the Kuadrant operator will no longer manage that component's tracing settings.

Note on Trace Continuity:

Currently, trace IDs do not propagate to WebAssembly modules in Istio/Envoy. This affects trace continuity when rate limiting is enforced, as requests may not have the relevant 'parent' trace ID in their trace information.

However, if the trace initiation point is outside of Envoy/Istio, the 'parent' trace ID will be available and included in traces passed to the collector. This limitation can impact correlating traces across the gateway, auth service, rate limiting, and other components in the request path.

Despite this, Kuadrant configures tracing for the wasm-shim when using the centralized configuration, ensuring that trace data is collected even if parent-child relationships may be limited in some scenarios.

Control Plane Tracing

The Kuadrant operator itself (the control plane) exports traces to your OpenTelemetry collector, allowing you to observe the operator's reconciliation loops and internal operations. This is useful for debugging controller behavior, understanding operator performance, and tracking policy lifecycle events.

Note: Control plane tracing may already be enabled in your installation. Check if you can see kuadrant-operator service in your tracing UI before configuring.

Enabling Control Plane Tracing

The Kuadrant operator exposes OpenTelemetry environment variables for control plane tracing. To enable control plane tracing, you need to set these environment variables in your operator deployment. The method for setting these will depend on your deployment approach (e.g., using Kustomize, Helm, OLM, or direct YAML manifests).

Available environment variables:

Environment Variable Description Default
OTEL_EXPORTER_OTLP_ENDPOINT OTLP collector endpoint for all signals (logs, traces, metrics). Supports http://, https://, rpc:// schemes - (tracing disabled)
OTEL_EXPORTER_OTLP_TRACES_ENDPOINT OTLP traces-specific endpoint (overrides OTEL_EXPORTER_OTLP_ENDPOINT) -
OTEL_EXPORTER_OTLP_INSECURE Disable TLS for OTLP export false
OTEL_SERVICE_NAME Service name for telemetry data kuadrant-operator
OTEL_SERVICE_VERSION Service version for telemetry data Build version (from ldflags)

Note: Tracing is enabled when either OTEL_EXPORTER_OTLP_ENDPOINT or OTEL_EXPORTER_OTLP_TRACES_ENDPOINT is set to a non-empty value.

Example values:

  • OTEL_EXPORTER_OTLP_ENDPOINT=rpc://jaeger-collector.jaeger.svc.cluster.local:4317
  • OTEL_EXPORTER_OTLP_INSECURE=true (use false in production with TLS)

Control plane traces will appear under service name kuadrant-operator in Jaeger/Grafana.

Control Plane vs Data Plane Tracing

Kuadrant supports tracing at two levels:

  1. Control Plane Tracing (this section): Traces the operator's reconciliation loops and internal operations
  2. Shows policy lifecycle events, topology building, resource creation

  3. Helps debug operator behavior and performance

  4. Data Plane Tracing (see configuration above): Traces actual user requests through the gateway and policy enforcement components

  5. Shows request flows through Istio/Envoy, Authorino, Limitador, and wasm-shim
  6. Helps debug request-level issues and policy enforcement

Configuration:

  • Control Plane: Configured via environment variables in the operator deployment (see "Enabling Control Plane Tracing" above)
  • Data Plane: Configured via the Kuadrant CR (spec.observability.tracing)

When both are configured to send traces to the same collector, you get a complete view of your Kuadrant system from policy reconciliation to request processing.

What Control Plane Traces Show

Control plane traces capture operator activities such as:

  • Policy reconciliation: When a policy (AuthPolicy, RateLimitPolicy, DNSPolicy, TLSPolicy) is created, updated, or deleted
  • Resource creation: Creating Authorino AuthConfigs, Limitador configurations, wasm-shim, etc.
  • Gateway topology discovery: Analyzing Gateway API resources and computing policy attachments
  • Status updates: Updating policy status conditions
  • Conflict detection: Detecting and resolving policy conflicts
  • Error handling: Tracking reconciliation errors and retries

These traces are separate from data plane traces (actual user requests) and help operators understand what the Kuadrant operator is doing behind the scenes.

Viewing Control Plane Traces

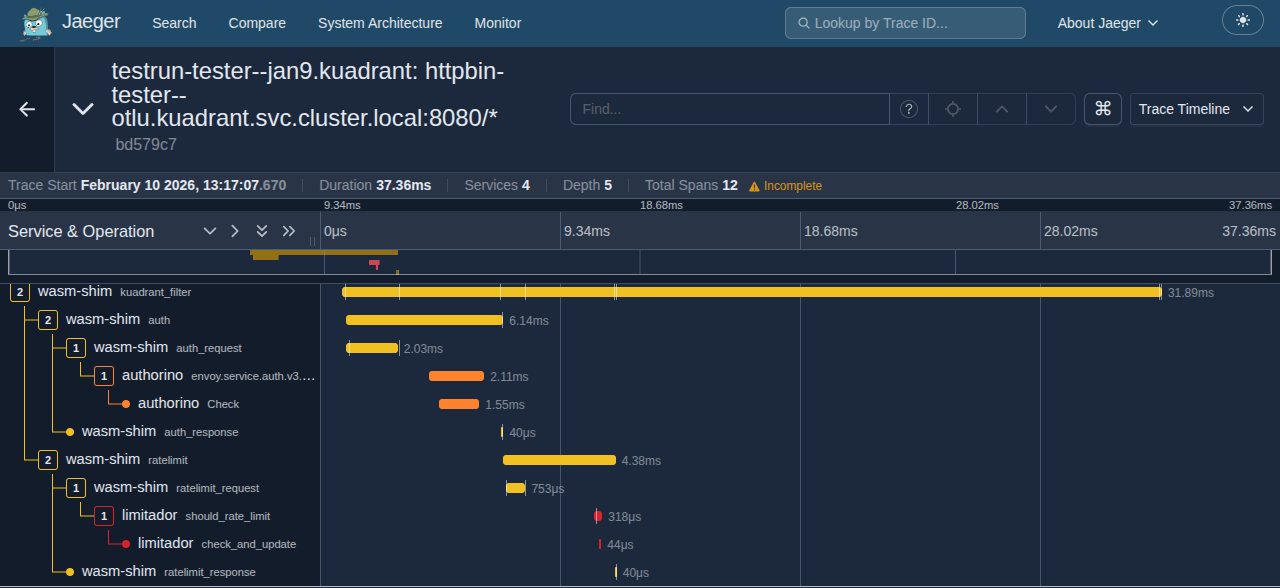

Once control plane tracing is enabled, you can view operator traces in Jaeger or Grafana:

Using Jaeger UI:

  1. Port-forward to Jaeger Query service:
    kubectl port-forward -n <jaeger-namespace> svc/jaeger-query 16686:80

Or if using the Jaeger all-in-one deployment:

kubectl port-forward -n <jaeger-namespace> svc/jaeger 16686:16686

  1. Open http://localhost:16686

  2. Select service: kuadrant-operator

  3. Search for traces by:

  4. Operation name: Look for operations like controller.reconcile, workflow.data_plane_policies
  5. Tags: Filter by specific policy using policy.name=my-policy-name
  6. Duration: Find slow reconciliations (e.g., min duration > 100ms)

Example searches:

Find all traces for a specific RateLimitPolicy:

Service: kuadrant-operator
Tags: policy.name=my-ratelimitpolicy

Find slow reconciliations for data plane policies:

Service: kuadrant-operator
Operation: workflow.data_plane_policies
Min Duration: 100ms

Example Trace Spans:

A typical reconciliation loop generates traces showing the workflow structure:

controller.reconcile (29.8ms)
├─ topology.build (495µs)
├─ workflow.init (12.56ms)
│  └─ init.topology_reconciler (10.41ms)
├─ workflow.data_plane_policies (15.73ms)
│  ├─ validation (72µs)
│  ├─ effective_policies (3.01ms)
│  │  ├─ effective_policies.auth
│  │  ├─ effective_policies.ratelimit
│  │  └─ effective_policies.token_ratelimit
│  ├─ reconciler.auth_configs (293µs)
│  ├─ reconciler.limitador_limits (216µs)
│  └─ wasm.BuildConfigForPath (142µs)
└─ status_update (12.64ms)

The trace structure reflects the operator's workflow-based reconciliation:

Main Workflows:

  • controller.reconcile: Main reconciliation entry point for all policy changes
  • topology.build: Building the Gateway API topology graph
  • workflow.init: Initialization workflow (topology reconciliation, event logging)
  • workflow.data_plane_policies: Auth and rate limiting policy reconciliation
  • workflow.dns: DNS policy reconciliation (when DNS policies are present)
  • workflow.tls: TLS policy reconciliation (when TLS policies are present)
  • workflow.observability: Observability configuration reconciliation
  • workflow.limitador: Limitador deployment reconciliation (when Limitador operator is installed)
  • workflow.authorino: Authorino deployment reconciliation (when Authorino operator is installed)
  • status_update: Final workflow for updating policy statuses

Data Plane Policy Workflow Spans:

  • validation: Validates AuthPolicy, RateLimitPolicy, TokenRateLimitPolicy resources
  • effective_policies: Computes effective policies for each HTTPRoute and Gateway
  • effective_policies.auth: Effective auth policies
  • effective_policies.ratelimit: Effective rate limit policies
  • effective_policies.token_ratelimit: Effective token rate limit policies
  • reconciler.auth_configs: Reconciles Authorino AuthConfig resources
  • reconciler.limitador_limits: Reconciles Limitador limit configurations
  • reconciler.istio_extension: Reconciles Istio WasmPlugin and EnvoyFilter resources (when Istio is the gateway provider)
  • reconciler.envoy_gateway_extension: Reconciles Envoy Gateway extension policies (when Envoy Gateway is the provider)
  • wasm.BuildConfigForPath: Builds wasm-shim configuration for a specific HTTPRoute path

Tracing Policy Lifecycle

To trace a specific policy creation or update:

  1. Create or update a policy:

    kubectl apply -f my-ratelimitpolicy.yaml

  2. Get the policy creation/update timestamp:

    kubectl get ratelimitpolicy my-policy -o jsonpath='{.metadata.creationTimestamp}'

  3. Search in Jaeger:

  4. Set the time range around the policy change timestamp
  5. Look for operation: controller.reconcile
  6. Expand the trace to see workflow details like workflow.data_plane_policies
  7. Look for specific reconciler spans like reconciler.limitador_limits or reconciler.auth_configs
  8. Check timing information to identify performance bottlenecks

Correlating Control Plane and Data Plane Traces

While control plane and data plane traces are separate, you can correlate them:

  1. Control plane trace: Shows when a policy was reconciled and resources created
  2. Data plane trace: Shows actual user requests processed with that policy

Example workflow:

  1. Create a RateLimitPolicy at 15:30:00
  2. View control plane trace to see:
  3. Policy reconciliation completed at 15:30:05
  4. Limitador configuration updated
  5. WASM plugin deployed
  6. Send a test request at 15:30:10
  7. View data plane trace to see:
  8. Request processed through the wasm-shim
  9. Rate limit check sent to Limitador
  10. Response returned

Local Development

For local development, you can run the operator with control plane tracing enabled by setting environment variables:

# Start Jaeger or an OTel collector
docker compose -f examples/otel/docker-compose.yaml up -d

# Run the operator with OpenTelemetry enabled
# Note: When running locally, env vars are used instead of the Kuadrant CR
export OTEL_EXPORTER_OTLP_INSECURE=true
export OTEL_EXPORTER_OTLP_ENDPOINT=http://localhost:4318
make run

# View traces in Jaeger (http://localhost:16686)

Note: Control plane tracing is always configured via environment variables (whether running locally or in-cluster). Data plane tracing is configured via the Kuadrant CR.

See the OpenTelemetry example for complete local development setup with Grafana, Tempo, Jaeger, Loki, and Prometheus.

Configuration Notes

When you configure tracing via the Kuadrant CR (spec.observability.tracing), it automatically enables tracing for:

  • Data Plane: Authorino, Limitador, and Wasm-shim

For control plane tracing (the operator's reconciliation loops), you must configure environment variables in the operator deployment as described in the section above.

The combination of control plane environment variables and Kuadrant CR data plane configuration provides complete tracing across your entire Kuadrant deployment.

Troubleshooting Control Plane Tracing

Traces not appearing in Jaeger:

  1. Check if tracing is configured in the Kuadrant CR:
    kubectl get kuadrant kuadrant -n kuadrant-system -o jsonpath='{.spec.observability.tracing}'

Expected output should show defaultEndpoint configured:

{"defaultEndpoint":"rpc://jaeger-collector.jaeger.svc.cluster.local:4317","insecure":true}

  1. Check operator logs for OTLP connection errors:

    kubectl logs -n kuadrant-system -l control-plane=controller-manager --tail=50 | grep -i otel

  2. Verify the tracing collector endpoint is reachable from the operator:

    # For HTTP OTLP endpoint (port 4318)
kubectl exec -n kuadrant-system deployment/kuadrant-operator-controller-manager -- \
  curl -v http://jaeger-collector.jaeger.svc.cluster.local:4318/v1/traces

  3. Test sending traces to the collector directly:

    # Port-forward to the collector for local testing
kubectl port-forward -n <jaeger-namespace> svc/jaeger-collector 4318:4318

# Send a test trace
curl -X POST http://localhost:4318/v1/traces \
  -H "Content-Type: application/json" \
  -d '{"resourceSpans":[]}'

Traces are incomplete or missing spans:

  • Check for errors in the operator logs that might indicate reconciliation failures
  • Verify the collector is not dropping spans due to rate limiting or storage issues
  • Check the collector's own logs for processing errors

Understanding Data Plane Traces

Prerequisites

Before you can view data plane traces, ensure you have:

  1. Tracing collector deployed - Jaeger, Tempo, or another OTLP-compatible collector
  2. Kuadrant CR configured with tracing endpoint:
    spec:
  observability:
    tracing:
      defaultEndpoint: rpc://jaeger-collector.jaeger.svc.cluster.local:4317
  3. At least one policy applied - AuthPolicy or RateLimitPolicy on a Gateway or HTTPRoute
  4. Traffic flowing through the gateway - Send requests to see traces

Without these prerequisites, you won't see traces in your tracing UI even if defaultLevels is configured.

What You'll See

When data plane tracing is enabled with defaultLevels: debug, you'll see detailed trace spans showing the complete request flow through Kuadrant components.

Example: Complete Request Trace

Here's what a typical traced request looks like when it flows through auth and rate limiting policies:

Request Flow (29.4ms total):
│
├─ Envoy Gateway Span (34.7ms)
│  └─ kuadrant_filter (29.4ms)
│     │
│     ├─ auth (6.8ms)
│     │  ├─ auth_request (1.2ms)
│     │  │  └─ Authorino gRPC Call
│     │  │     └─ envoy.service.auth.v3.Authorization/Check (2.0ms)
│     │  │        └─ Check (1.7ms)
│     │  └─ auth_response (56μs)
│     │
│     └─ ratelimit (6.0ms)
│        ├─ ratelimit_request (576μs)
│        │  └─ Limitador gRPC Call
│        │     └─ should_rate_limit (309μs)
│        │        └─ check_and_update (36μs)
│        └─ ratelimit_response (38μs)
│
└─ Backend Service: httpbin (34.7ms)

Trace Attributes You'll See

Data plane traces include rich context from multiple services:

Wasm-shim Spans (service: wasm-shim):

  • Request correlation IDs from httpHeaderIdentifier configuration
  • Matched hostname and route configuration details
  • Policy attribution showing which AuthPolicy/RateLimitPolicy rules were evaluated
  • At DEBUG level: Detailed gRPC call information, property updates, and header manipulations

Authorino Spans (service: authorino):

  • Request ID correlation
  • gRPC service calls and status codes
  • Authentication and authorization decision details

Limitador Spans (service: limitador):

  • Rate limit check requests with trace context
  • Limit descriptors and counter information

Viewing This Trace in Jaeger

Search by Request ID:

Service: wasm-shim
Tags: request_id=adefc8cf-78af-9db7-97e5-5ae5e2b22c05

Filter by Operation:

Service: wasm-shim
Operation: kuadrant_filter
Min Duration: 10ms

Examine Specific Policy:

Service: wasm-shim
Tags: sources=authpolicy.kuadrant.io:kuadrant/my-auth-policy

What This Shows You

  1. Complete Request Timeline: See exactly how long each component took
  2. Auth check: 6.8ms (including Authorino processing)
  3. Rate limit check: 6.0ms (including Limitador processing)

  4. Total protection time: 12.8ms (wasm-shim)

  5. Request Correlation: Request IDs flow across all services (wasm-shim, Authorino, Limitador) for end-to-end tracing

  6. Policy Attribution: Trace attributes identify which policies (AuthPolicy, RateLimitPolicy) were evaluated for each request

  7. gRPC Call Details: At DEBUG level, traces include detailed information about calls to Authorino and Limitador services

Troubleshooting Scenarios with Traces

Scenario: Auth is slow

  1. Find the trace in Jaeger by request_id
  2. Expand the auth span
  3. Check the auth_request → Check span duration
  4. Check Authorino pod logs for detailed errors or retries:
    kubectl logs -n kuadrant-system -l app=authorino --tail=100 | grep <request_id>

Scenario: Rate limit not working

  1. Search for traces with operation: ratelimit
  2. Check the sources tag - is your RateLimitPolicy listed?
  3. Check Limitador's should_rate_limit span for the decision
  4. Check Limitador pod logs for the limit descriptors sent:
    kubectl logs -n kuadrant-system -l app=limitador --tail=100 | grep <request_id>

Scenario: Find which policy is rejecting requests

  1. Filter traces by response code: Tags: http.status_code=403
  2. Look at the sources tag to identify the policy
  3. Check the span that completed just before the rejection
  4. Check component pod logs for detailed rejection reasons (Authorino or gateway logs depending on the policy)

Troubleshooting

Enabling Gateway Debug Logs

The wasm-shim's logs you see via kubectl logs are controlled by Envoy's log level, not the Kuadrant CR defaultLevels setting.

To enable debug logging in gateway pod output:

For Istio gateways (dynamic - temporary):

# Port-forward to Envoy admin interface
kubectl port-forward -n istio-system deploy/istio-ingressgateway 15000:15000

# Enable WASM debug logging
curl -X POST 'http://localhost:15000/logging?wasm=debug'

# Or enable debug for all components:
curl -X POST 'http://localhost:15000/logging?level=debug'

Note: Most gateway pods don't have curl installed, so we use port-forwarding to access the Envoy admin interface from your local machine. This setting is temporary and will reset when the pod restarts.

For Istio gateways (persistent - via Istio Operator):

apiVersion: operator.istio.io/v1alpha1
kind: Istio
metadata:
  name: default
spec:
  values:
    meshConfig:
      defaultConfig:
        proxyMetadata:
          WASM_LOG_LEVEL: debug

For Envoy Gateway:

apiVersion: gateway.envoyproxy.io/v1alpha1
kind: EnvoyProxy
metadata:
  name: custom-proxy-config
  namespace: envoy-gateway-system
spec:
  logging:
    level:
      default: debug

Use Cases:

  1. Troubleshooting in production with traces: Set defaultLevels.debug: "true" in the Kuadrant CR to get detailed trace spans in Jaeger without flooding gateway logs
  2. Local development debugging: Enable both defaultLevels.debug AND Envoy's WASM log level for complete visibility
  3. Request correlation: Set httpHeaderIdentifier: x-request-id to track requests across components using the request ID header

Troubleshooting Flow Using Traces and Logs

Using a tracing interface like the Jaeger UI or Grafana, you can search for trace information by the trace ID. You may get the trace ID from logs, or from a header in a sample request you want to troubleshoot. You can also search for recent traces, filtering by the service you want to focus on.

Here is an example trace in the Jaeger UI showing the total request time from the gateway (Istio), the time to check the curent rate limit count (and update it) in limitador and the time to check auth in Authorino:

Trace in Jaeger UI

In limitador, it is possible to enable request logging with trace IDs to get more information on requests. This requires the log level to be increased to at least debug, so the verbosity must be set to 3 or higher in the Limitador CR. For example:

apiVersion: limitador.kuadrant.io/v1alpha1
kind: Limitador
metadata:
  name: limitador
spec:
  verbosity: 3

A log entry will look something like this, with the traceparent field holding the trace ID:

"ShouldRateLimit Request received: Request { metadata: MetadataMap { headers: {"te": "trailers", "grpc-timeout": "1000m", "content-type": "application/grpc", "traceparent": "00-bd579c77366d2868ec14a69d0abd2b6d-532e38f2d4e17132-01", "x-request-id": "b18cf0b0-29d8-9feb-bcfb-a0dc08479400", "x-envoy-internal": "true", "x-envoy-expected-rq-timeout-ms": "1000"} }, message: RateLimitRequest { domain: "kuadrant/route-tester--d304", descriptors: [RateLimitDescriptor { entries: [Entry { key: "limit.testuser__2feff48d", value: "1" }], limit: None }], hits_addend: 1 }, extensions: Extensions }"

If you centrally aggregate logs using something like promtail and loki, you can jump between trace information and the relevant logs for that service:

Trace and logs in Grafana UI

Using a combination of tracing and logs, you can visualise and troubleshoot request timing issues and drill down to specific services. This method becomes even more powerful when combined with metrics, access logs, and dashboards to get a more complete picture of your users traffic.
