CoreDNS with Kuadrant

With this guide, you will learn how to setup Kuadrant to use CoreDNS via the Kuadrant DNSPolicy and leverage CoreDNS as the authoritative nameserver(s) for a given domain shared across multiple gateways to provide both a weighted and GEO based DNS response similar to that offered by common cloud providers.

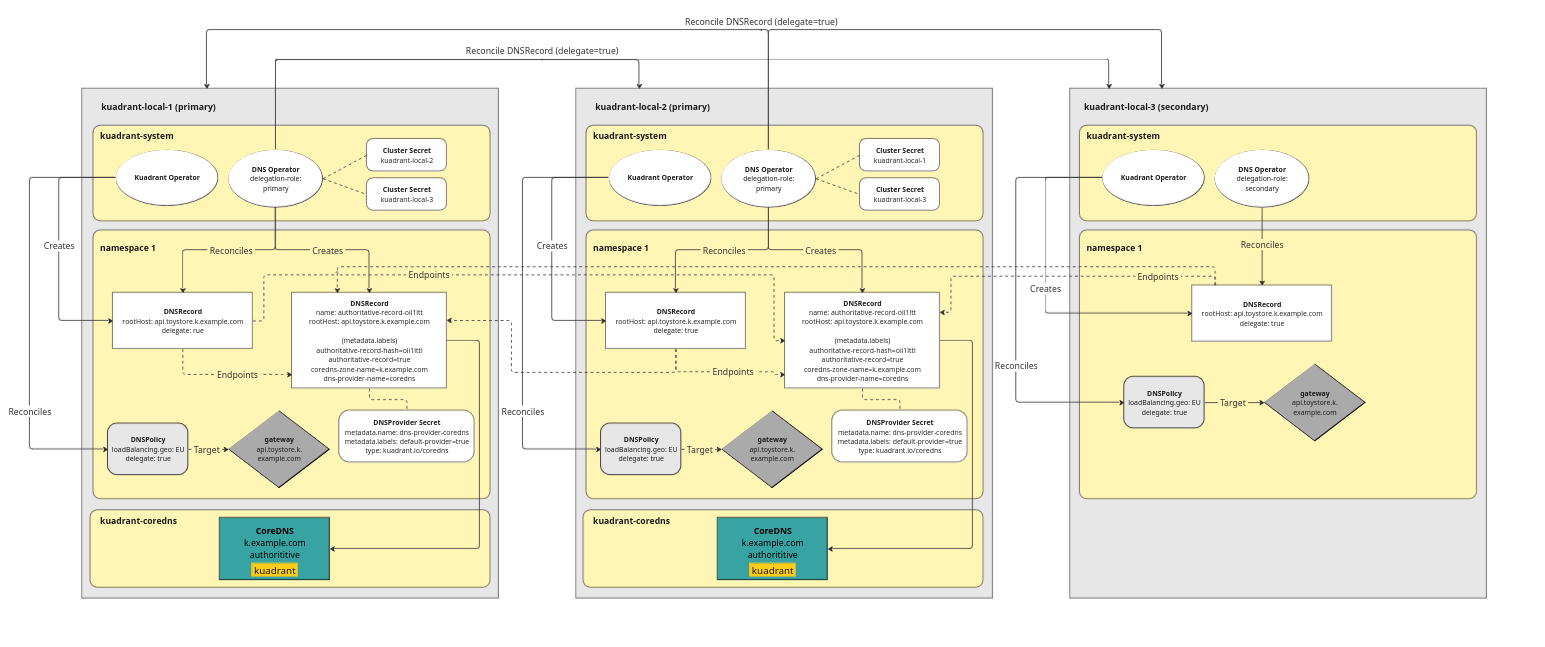

The basic architecture for how the CoreDNS integration works is shown in the image below:

architecture

Overview

dns-operator documentation: For detailed CoreDNS configuration including Corefile setup, zone configuration, GeoIP databases, and local development, see the dns-operator CoreDNS documentation.

Kuadrant's DNS Operator will create an authoritative DNSRecord for any DNSRecord that reference a CoreDNS provider secret directly or via a "default" provider secret. The authoritative record is named and labeled in a deterministic way using the source DNSRecord root host and contains all the endpoints related to that root host which could be coming from multiple DNSRecord sources. The DNS Operator can be configured to read DNSRecords from multiple clusters allowing DNSRecords in the same namespace with the same root host to form a single authoritative merged record set on selected "primary" clusters. Kuadrant's custom CoreDNS plugin, will read and serve the authoritative record. If there is provider specific meta data for weight and GEO, the kuadrant plugin will apply GEO location filtering (assuming there is an appropriate GEO database configured) and a weighted response to any DNS queries for the dns names in those records.

This guide shows the manual steps required to configure the kuadrant CoreDNS integration in a multi cluster setup (Two primary clusters and one secondary).

Prerequisites

  • Kubernetes cluster(s) (Three to test all functionality described in this guide)
  • Kuadrant installed on each cluster

Local Kind clusters [Optional]

If you want to see how this works locally and are not using existing clusters, the easiest approach is to use kind to create local clusters.

To try this out you can use the local-setup helper from the kuadrant-operator repo:

git clone https://github.com/Kuadrant/kuadrant-operator.git

Run the following from the root of the repo:

CLUSTER_COUNT=3 ./hack/multicluster.sh local-setup

This will create three local Kind clusters with Kuadrant installed, you can set the context env vars used in the rest of this guide by running the following:

export CTX_PRIMARY1=kind-kuadrant-local-1
export CTX_PRIMARY2=kind-kuadrant-local-2
export CTX_SECONDARY1=kind-kuadrant-local-3

Setup Cluster 1 and 2 (Primary)

At least one cluster must be configured as a primary. A primary cluster that is intended to be used with the CoreDNS provider should have a CoreDNS instance running with the Kuadrant plugin enabled. A primary cluster should have cluster interconnection secrets added for all other clusters. A primary cluster should have dns provider (coredns) secrets in target namespaces.

Install CoreDNS

You can install CoreDNS configured with the kuadrant plugin using the follow kustomize command while kubectl is targeting the desired cluster, this will install CoreDNS into the kuadrant-coredns namespace:

kustomize build --enable-helm https://github.com/Kuadrant/dns-operator/config/coredns | kubectl apply --context ${CTX_PRIMARY1} -f -
kustomize build --enable-helm https://github.com/Kuadrant/dns-operator/config/coredns | kubectl apply --context ${CTX_PRIMARY2} -f -

kubectl wait --timeout=90s --for=condition=Ready=True pods -A -l app.kubernetes.io/name=coredns --context ${CTX_PRIMARY1}
kubectl wait --timeout=90s --for=condition=Ready=True pods -A -l app.kubernetes.io/name=coredns --context ${CTX_PRIMARY2}

kubectl get deployments -A -l app.kubernetes.io/name=coredns --context ${CTX_PRIMARY1}
kubectl get deployments -A -l app.kubernetes.io/name=coredns --context ${CTX_PRIMARY2}

OpenShift on AWS

If you are using an OpenShift cluster on AWS you will also need to run the following commands:

kubectl patch service kuadrant-coredns --type='json' -p='[{"op": "remove", "path": "/spec/externalTrafficPolicy"}]' -n kuadrant-coredns --context ${CTX_PRIMARY1}
kubectl patch service kuadrant-coredns --type='json' -p='[{"op": "remove", "path": "/spec/externalTrafficPolicy"}]' -n kuadrant-coredns --context ${CTX_PRIMARY2}
kubectl annotate service/kuadrant-coredns service.beta.kubernetes.io/aws-load-balancer-type=nlb -n kuadrant-coredns --context ${CTX_PRIMARY1}
kubectl annotate service/kuadrant-coredns service.beta.kubernetes.io/aws-load-balancer-type=nlb -n kuadrant-coredns --context ${CTX_PRIMARY2}

Note: OpenShift on AWS does not currently support exposing a single port on both UDP and TCP, so in this setup only UDP port 53 is exposed via the ELB.

Verify

Check that the CoreDNS instances are available and responding to queries:

NS1=`kubectl get service/kuadrant-coredns -n kuadrant-coredns -o yaml --context ${CTX_PRIMARY1} | yq '.status.loadBalancer.ingress[0].ip'`
NS2=`kubectl get service/kuadrant-coredns -n kuadrant-coredns -o yaml --context ${CTX_PRIMARY2} | yq '.status.loadBalancer.ingress[0].ip'`
echo $NS1
echo $NS2
dig @${NS1} k.example.com SOA

Expected output (before DNSRecords are created):

;; ANSWER SECTION:
k.example.com. 60 IN SOA ns1.k.example.com. hostmaster.k.example.com. 12345 7200 1800 86400 60

The zone is configured but contains no records yet. This is normal.

You can also view all zone records using zone transfer:

dig @${NS1} -t AXFR k.example.com
dig @${NS2} -t AXFR k.example.com

Zone Configuration

A default zone (k.example.com) is created for testing purposes. This can be replaced, or additional zones added, as desired by modifying the "Corefile" on each primary cluster.

kubectl get configmap/kuadrant-coredns -n kuadrant-coredns -o yaml --context ${CTX_PRIMARY1} | yq .data
kubectl get configmap/kuadrant-coredns -n kuadrant-coredns -o yaml --context ${CTX_PRIMARY2} | yq .data

The sample CoreDNS configuration is generated from this file: CoreDNS Configuration. That domain name can be changed or duplicated to add other domains as required.

For detailed zone configuration options, NS records, and multi-cluster setup, see the dns-operator CoreDNS documentation.

For more information on configuring CoreDNS please refer to their documentation.

Using a GEO IP database

The CoreDNS instances will need to be configured to use a GEO IP database, in the example above this is called: GeoLite2-City-demo.mmdb. This is a mock database we provide for illustrative purposes. Change this to refer to your maxmind database file, for more information see here.

For testing geographic routing with the demo database, see the subnet-to-location mapping table and testing instructions in the dns-operator CoreDNS documentation.

For more information on configuring the CoreDNS geoip plugin please refer to their documentation.

Corefile Configuration

The CoreDNS configuration (Corefile) defines which plugins execute for each zone. For plugin configuration details, execution order, and complete examples, see the dns-operator CoreDNS documentation.

Advanced: Customizing SOA RNAME (Optional)

To customize the SOA RNAME email address in DNS records, see the dns-operator CoreDNS documentation.

Delegate the zones (public cluster only)

This cannot be done when testing locally, but assuming the CoreDNS instance is running on a publicly accessible IP which permits traffic on port 53, then the zone(s) in use will need to be delegated to these nameservers. For testing and evaluation we would recommend creating a fresh zone.

This is done by creating an NS record in the zone hosted by the authoritative nameserver.

For example, if there is a domain example.com with authoritative nameservers in Route53, and 2 CoreDNS instances are configured with the zone k.example.com (on IPs 1.2.3.4 and 2.3.4.5). Then in the example.com zone in Route53 the following records need to be created:

coredns1.example.com. IN A 60 1.2.3.4
coredns2.example.com. IN A 60 2.3.4.5
k.example.com. IN NS 300 coredns1.example.com.
k.example.com. IN NS 300 coredns2.example.com.

If the CoreDNS instances are not publicly accessible, then we will be able to verify them using the @ modifier on a dig command.

DNS Operator Configuration

Clusters being configured as "primary" should have the delegation role of the running dns operator set to "primary". This is currently the default so nothing needs to be done here.

Add Cluster Interconnection Secrets

For each primary cluster to read DNSRecord resources from all other clusters (primary or secondary), a cluster interconnection secret containing kubeconfig data for each of the other clusters must be added.

The kubectl kuadrant-dns CLI provides a command to help create a valid cluster secret from the expected service account on the target cluster. There is no alternative method for creating these secrets - the CLI tool must be used to ensure proper formatting and permissions.

Refer to the dns-operator documentation for instructions on installing the CLI.

Assuming the kubectl kuadrant-dns CLI is installed (or the kubectl-kuadrant_dns binary is in the system path), run the following to connect all clusters to each primary:

# Set current context to primary 1
kubectl config use-context ${CTX_PRIMARY1}
kubectl kuadrant-dns add-cluster-secret --context ${CTX_PRIMARY2} --namespace kuadrant-system
kubectl kuadrant-dns add-cluster-secret --context ${CTX_SECONDARY1} --namespace kuadrant-system
# Set current context to primary 2
kubectl config use-context ${CTX_PRIMARY2}
kubectl kuadrant-dns add-cluster-secret --context ${CTX_PRIMARY1} --namespace kuadrant-system
kubectl kuadrant-dns add-cluster-secret --context ${CTX_SECONDARY1} --namespace kuadrant-system

If you are using Kind clusters (created with ./hack/multicluster.sh), the above produces invalid kubeconfig data. As a temporary workaround you can run the following from the root of the kuadrant-operator repository:

# Run from kuadrant-operator repository root
./hack/multicluster.sh create-cluster-secret ${CTX_PRIMARY1} ${CTX_PRIMARY2}
./hack/multicluster.sh create-cluster-secret ${CTX_PRIMARY1} ${CTX_SECONDARY1}
./hack/multicluster.sh create-cluster-secret ${CTX_PRIMARY2} ${CTX_PRIMARY1}
./hack/multicluster.sh create-cluster-secret ${CTX_PRIMARY2} ${CTX_SECONDARY1}

Verify

Check that the cluster interconnection secrets exist on the primary clusters:

kubectl get secret -A -l kuadrant.io/multicluster-kubeconfig=true --context ${CTX_PRIMARY1}
kubectl get secret -A -l kuadrant.io/multicluster-kubeconfig=true --context ${CTX_PRIMARY2}
kubectl get secret -A -l kuadrant.io/multicluster-kubeconfig=true --context ${CTX_SECONDARY1}

Check that the cluster interconnection secret content is valid kubeconfig data:

kubectl get secret kind-kuadrant-local-2 -n kuadrant-system --context ${CTX_PRIMARY1} -o jsonpath='{.data.kubeconfig}' | base64 -d

Create test namespace (dnstest)

kubectl create ns dnstest --context ${CTX_PRIMARY1}
kubectl create ns dnstest --context ${CTX_PRIMARY2}

Add coredns provider secrets

The CoreDNS provider secret should be created with the desired zones configured. In this case we create it for the test zone (k.example.com):

kubectl create secret generic dns-provider-coredns --namespace=dnstest --type=kuadrant.io/coredns --from-literal=ZONES="k.example.com" --context ${CTX_PRIMARY1}
kubectl create secret generic dns-provider-coredns --namespace=dnstest --type=kuadrant.io/coredns --from-literal=ZONES="k.example.com" --context ${CTX_PRIMARY2}

Set the CoreDNS provider as the default allowing it to be selected when none is specified by the DNSPolicy:

kubectl label secret/dns-provider-coredns -n dnstest kuadrant.io/default-provider=true --context ${CTX_PRIMARY1}
kubectl label secret/dns-provider-coredns -n dnstest kuadrant.io/default-provider=true --context ${CTX_PRIMARY2}

Setup Cluster 3 (Secondary)

Secondary clusters are optional. A secondary does not have CoreDNS installed. A secondary cluster does not have cluster interconnection secrets added. A secondary cluster does not have provider credentials.

DNS Operator Configuration

Clusters being configured as "secondary" should have the delegation role of the running dns operator set to "secondary".

This can be done by updating the dns operators configuration configmap(dns-operator-controller-env) in the kuadrant-system namespace and restarting the service:

kubectl patch configmap dns-operator-controller-env -n kuadrant-system --type merge -p '{"data":{"DELEGATION_ROLE":"secondary"}}' --context ${CTX_SECONDARY1}
kubectl scale deployment/dns-operator-controller-manager -n kuadrant-system --replicas=0 --context ${CTX_SECONDARY1}
kubectl scale deployment/dns-operator-controller-manager -n kuadrant-system --replicas=1 --context ${CTX_SECONDARY1}
kubectl rollout status deployment/dns-operator-controller-manager -n kuadrant-system --timeout=300s --context ${CTX_SECONDARY1}
kubectl logs deployment/dns-operator-controller-manager -n kuadrant-system --context ${CTX_SECONDARY1} | grep "delegationRole"

Create test namespace (dnstest)

kubectl create ns dnstest --context ${CTX_SECONDARY1}

Cluster Setup complete, ready to deploy application!!

Deploy Toystore application

Deploy the toystore application on all clusters:

kubectl apply -f https://raw.githubusercontent.com/Kuadrant/Kuadrant-operator/main/examples/toystore/toystore.yaml -n dnstest --context ${CTX_PRIMARY1}
kubectl apply -f https://raw.githubusercontent.com/Kuadrant/Kuadrant-operator/main/examples/toystore/toystore.yaml -n dnstest --context ${CTX_PRIMARY2}
kubectl apply -f https://raw.githubusercontent.com/Kuadrant/Kuadrant-operator/main/examples/toystore/toystore.yaml -n dnstest --context ${CTX_SECONDARY1}

kubectl -n dnstest wait --for=condition=Available deployments toystore --timeout=60s --context ${CTX_PRIMARY1}
kubectl -n dnstest wait --for=condition=Available deployments toystore --timeout=60s --context ${CTX_PRIMARY2}
kubectl -n dnstest wait --for=condition=Available deployments toystore --timeout=60s --context ${CTX_SECONDARY1}

Create an Ingress Gateway

Create a gateway using the coredns zone name as part of a listener hostname on all clusters:

gateway=$(cat <<EOF
apiVersion: gateway.networking.k8s.io/v1
kind: Gateway
metadata:
  name: external
  namespace: dnstest
  labels:
    kuadrant.io/gateway: "true"
spec:
  gatewayClassName: istio
  listeners:

    - name: http
      protocol: HTTP
      port: 80
      allowedRoutes:
        namespaces:
          from: All
      hostname: "api.toystore.k.example.com"
EOF)

echo "${gateway}" | kubectl apply --context ${CTX_PRIMARY1} -f -
echo "${gateway}" | kubectl apply --context ${CTX_PRIMARY2} -f -
echo "${gateway}" | kubectl apply --context ${CTX_SECONDARY1} -f -

Setup Toystore application HTTPRoute

httproute=$(cat <<EOF
apiVersion: gateway.networking.k8s.io/v1
kind: HTTPRoute
metadata:
  name: toystore
  namespace: dnstest
  labels:
    deployment: toystore
    service: toystore
spec:
  parentRefs:

  - name: external
    namespace: dnstest
  hostnames:
  - "api.toystore.k.example.com"
  rules:
  - matches:
    - method: GET
      path:
        type: PathPrefix
        value: "/cars"
    backendRefs:
    - name: toystore
      port: 80
EOF
)

echo "${httproute}" | kubectl apply --context ${CTX_PRIMARY1} -f -
echo "${httproute}" | kubectl apply --context ${CTX_PRIMARY2} -f -
echo "${httproute}" | kubectl apply --context ${CTX_SECONDARY1} -f -

Verify

kubectl get gateway,httproute,service,deployment,all --context ${CTX_PRIMARY1} -n dnstest
kubectl get gateway,httproute,service,deployment,all --context ${CTX_PRIMARY2} -n dnstest
kubectl get gateway,httproute,service,deployment,all --context ${CTX_SECONDARY1} -n dnstest

Enable DNS on the gateway

Create a Kuadrant DNSPolicy to configure DNS on all clusters:

dnspolicyeu=$(cat <<EOF
apiVersion: kuadrant.io/v1
kind: DNSPolicy
metadata:
  name: external-dns
  namespace: dnstest
spec:
  targetRef:
    name: external
    group: gateway.networking.k8s.io
    kind: Gateway
  loadBalancing:
    weight: 100
    geo: GEO-EU
    defaultGeo: true
  delegate: true
EOF
)
dnspolicyus=$(cat <<EOF
apiVersion: kuadrant.io/v1
kind: DNSPolicy
metadata:
  name: external-dns
  namespace: dnstest
spec:
  targetRef:
    name: external
    group: gateway.networking.k8s.io
    kind: Gateway
  loadBalancing:
    weight: 125
    geo: GEO-NA
    defaultGeo: false
  delegate: true
EOF
)

echo "${dnspolicyeu}" | kubectl apply --context ${CTX_PRIMARY1} -f -
echo "${dnspolicyus}" | kubectl apply --context ${CTX_PRIMARY2} -f -
echo "${dnspolicyeu}" | kubectl apply --context ${CTX_SECONDARY1} -f -

Verify

First, retrieve the CoreDNS nameserver addresses:

NS1=`kubectl get service/kuadrant-coredns -n kuadrant-coredns -o yaml --context ${CTX_PRIMARY1} | yq '.status.loadBalancer.ingress[0].ip'`
NS2=`kubectl get service/kuadrant-coredns -n kuadrant-coredns -o yaml --context ${CTX_PRIMARY2} | yq '.status.loadBalancer.ingress[0].ip'`
echo "CoreDNS Nameservers:"
echo "NS1 (Cluster 1): ${NS1}"
echo "NS2 (Cluster 2): ${NS2}"

Check the DNSRecord resources on each cluster:

kubectl get dnsrecord -n dnstest -o wide --context ${CTX_PRIMARY1}
kubectl get dnsrecord -n dnstest -o wide --context ${CTX_PRIMARY2}
kubectl get dnsrecord -n dnstest -o wide --context ${CTX_SECONDARY1}

Check the authoritative DNSRecord resources on each primary:

Note: The authoritative DNSRecord name is deterministically generated from the root host domain using the pattern authoritative-record-<hash>, where the hash is computed from the domain name. For this guide using the domain k.example.com, the authoritative record will be named authoritative-record-oii1lttl. You can list all DNSRecords to verify the name in your environment.

# List all DNSRecords to see both source and authoritative records
kubectl get dnsrecord -n dnstest --context ${CTX_PRIMARY1}
kubectl get dnsrecord -n dnstest --context ${CTX_PRIMARY2}

# Inspect the authoritative record for k.example.com
kubectl get dnsrecord/authoritative-record-oii1lttl -n dnstest -o json --context ${CTX_PRIMARY1} | jq -r '.spec.endpoints[] | "dnsName: \(.dnsName), recordType: \(.recordType), targets: \(.targets)"'
kubectl get dnsrecord/authoritative-record-oii1lttl -n dnstest -o json --context ${CTX_PRIMARY2} | jq -r '.spec.endpoints[] | "dnsName: \(.dnsName), recordType: \(.recordType), targets: \(.targets)"'

Check the k.example.com zone on each CoreDNS instance contains the expected records:

dig @${NS1} -t AXFR k.example.com
dig @${NS2} -t AXFR k.example.com

Check the CoreDNS instances respond as expected:

dig @${NS1} api.toystore.k.example.com +short
dig @${NS2} api.toystore.k.example.com +short

Delete DNSPolicy from all clusters:

kubectl delete dnspolicy external-dns -n dnstest --context ${CTX_PRIMARY1}
kubectl delete dnspolicy external-dns -n dnstest --context ${CTX_PRIMARY2}
kubectl delete dnspolicy external-dns -n dnstest --context ${CTX_SECONDARY1}

Cleanup

Exercise caution when running cleanup commands. If you had delegation configured on these clusters before following this guide, the cleanup steps below will disrupt your existing delegation setup. Review each command carefully and skip any that would affect pre-existing resources you want to preserve.

To remove all resources created in this guide:

# Delete DNS policies
kubectl delete dnspolicy external-dns -n dnstest --context ${CTX_PRIMARY1}
kubectl delete dnspolicy external-dns -n dnstest --context ${CTX_PRIMARY2}
kubectl delete dnspolicy external-dns -n dnstest --context ${CTX_SECONDARY1}

# Delete gateway
kubectl delete gateway external -n dnstest --context ${CTX_PRIMARY1}
kubectl delete gateway external -n dnstest --context ${CTX_PRIMARY2}
kubectl delete gateway external -n dnstest --context ${CTX_SECONDARY1}

# Delete httproute
kubectl delete httproute toystore -n dnstest --context ${CTX_PRIMARY1}
kubectl delete httproute toystore -n dnstest --context ${CTX_PRIMARY2}
kubectl delete httproute toystore -n dnstest --context ${CTX_SECONDARY1}

# Delete toystore deployment
kubectl delete -f https://raw.githubusercontent.com/Kuadrant/kuadrant-operator/main/examples/toystore/toystore.yaml -n dnstest --context ${CTX_PRIMARY1}
kubectl delete -f https://raw.githubusercontent.com/Kuadrant/kuadrant-operator/main/examples/toystore/toystore.yaml -n dnstest --context ${CTX_PRIMARY2}
kubectl delete -f https://raw.githubusercontent.com/Kuadrant/kuadrant-operator/main/examples/toystore/toystore.yaml -n dnstest --context ${CTX_SECONDARY1}

# Delete provider secrets
kubectl delete secret dns-provider-coredns -n dnstest --context ${CTX_PRIMARY1}
kubectl delete secret dns-provider-coredns -n dnstest --context ${CTX_PRIMARY2}

# Delete test namespace
kubectl delete ns dnstest --context ${CTX_PRIMARY1}
kubectl delete ns dnstest --context ${CTX_PRIMARY2}
kubectl delete ns dnstest --context ${CTX_SECONDARY1}

# Delete cluster interconnection secrets (primary clusters only)
kubectl delete secret -A -l kuadrant.io/multicluster-kubeconfig=true --context ${CTX_PRIMARY1}
kubectl delete secret -A -l kuadrant.io/multicluster-kubeconfig=true --context ${CTX_PRIMARY2}

# Delete CoreDNS instances (primary clusters only)
kubectl delete ns kuadrant-coredns --context ${CTX_PRIMARY1}
kubectl delete ns kuadrant-coredns --context ${CTX_PRIMARY2}

# Reset DNS Operator to primary mode on secondary cluster (if needed)
kubectl patch configmap dns-operator-controller-env -n kuadrant-system --type merge -p '{"data":{"DELEGATION_ROLE":"primary"}}' --context ${CTX_SECONDARY1}
kubectl scale deployment/dns-operator-controller-manager -n kuadrant-system --replicas=0 --context ${CTX_SECONDARY1}
kubectl scale deployment/dns-operator-controller-manager -n kuadrant-system --replicas=1 --context ${CTX_SECONDARY1}
