Simple Rate Limiting for Application developers

For more info on the different personas see Gateway API

This tutorial walks you through an example of how to configure rate limiting for an endpoint of an application using Kuadrant.

In this tutorial, we will rate limit a sample REST API called Toy Store. In reality, this API is just an echo service that echoes back to the user whatever attributes it gets in the request. The API listens to requests at the hostname api.toystore.com, where it exposes the endpoints GET /toys* and POST /toys, respectively, to mimic operations of reading and writing toy records.

We will rate limit the POST /toys endpoint to a maximum of 5rp10s ("5 requests every 10 seconds").

Prerequisites

• Kubernetes cluster with Kuadrant operator installed. See our Getting Started guide for more information.
• kubectl command line tool.

Setup environment variables

Set the following environment variables used for convenience in this tutorial:

export KUADRANT_GATEWAY_NS=api-gateway # Namespace for the example Gateway
export KUADRANT_GATEWAY_NAME=external # Name for the example Gateway
export KUADRANT_DEVELOPER_NS=toystore # Namespace for an example toystore app

Create an Ingress Gateway

Create the namespace the Gateway will be deployed in:

kubectl create ns ${KUADRANT_GATEWAY_NS}

Create a gateway using toystore as the listener hostname:

kubectl apply -f - <<EOF
apiVersion: gateway.networking.k8s.io/v1
kind: Gateway
metadata:
  name: ${KUADRANT_GATEWAY_NAME}
  namespace: ${KUADRANT_GATEWAY_NS}
  labels:
    kuadrant.io/gateway: "true"
spec:
  gatewayClassName: istio
  listeners:

    - name: http
      protocol: HTTP
      port: 80
      allowedRoutes:
        namespaces:
          from: All
EOF

Check the status of the Gateway ensuring the gateway is Accepted and Programmed:

kubectl get gateway ${KUADRANT_GATEWAY_NAME} -n ${KUADRANT_GATEWAY_NS} -o=jsonpath='{.status.conditions[?(@.type=="Accepted")].message}{"\n"}{.status.conditions[?(@.type=="Programmed")].message}{"\n"}'

Deploy the Toy Store API

Create the deployment:

kubectl apply -f https://raw.githubusercontent.com/Kuadrant/Kuadrant-operator/main/examples/toystore/toystore.yaml

Create a HTTPRoute to route traffic to the service via Istio Ingress Gateway:

kubectl apply -f - <<EOF
apiVersion: gateway.networking.k8s.io/v1
kind: HTTPRoute
metadata:
  name: toystore
spec:
  parentRefs:

  - name: ${KUADRANT_GATEWAY_NAME}
    namespace: ${KUADRANT_GATEWAY_NS}
  hostnames:
  - api.toystore.com
  rules:
  - matches:
    - method: GET
      path:
        type: PathPrefix
        value: "/toys"
    backendRefs:
    - name: toystore
      port: 80
  - matches: # it has to be a separate HTTPRouteRule so we do not rate limit other endpoints
    - method: POST
      path:
        type: Exact
        value: "/toys"
    backendRefs:
    - name: toystore
      port: 80
EOF

Export the gateway hostname and port:

export KUADRANT_INGRESS_HOST=$(kubectl get gtw ${KUADRANT_GATEWAY_NAME} -n ${KUADRANT_GATEWAY_NS} -o jsonpath='{.status.addresses[0].value}')
export KUADRANT_INGRESS_PORT=$(kubectl get gtw ${KUADRANT_GATEWAY_NAME} -n ${KUADRANT_GATEWAY_NS} -o jsonpath='{.spec.listeners[?(@.name=="http")].port}')
export KUADRANT_GATEWAY_URL=${KUADRANT_INGRESS_HOST}:${KUADRANT_INGRESS_PORT}

Verify the route works:

curl -H 'Host: api.toystore.com' http://$KUADRANT_GATEWAY_URL/toys -i
# HTTP/1.1 200 OK

Note: If the command above fails to hit the Toy Store API on your environment, try forwarding requests to the service and accessing over localhost:

kubectl port-forward -n ${KUADRANT_GATEWAY_NS} service/${KUADRANT_GATEWAY_NAME}-istio 9080:80 >/dev/null 2>&1 &
export KUADRANT_GATEWAY_URL=localhost:9080

curl -H 'Host: api.toystore.com' http://$KUADRANT_GATEWAY_URL/toy -i
# HTTP/1.1 200 OK

Enforce rate limiting on requests to the Toy Store API

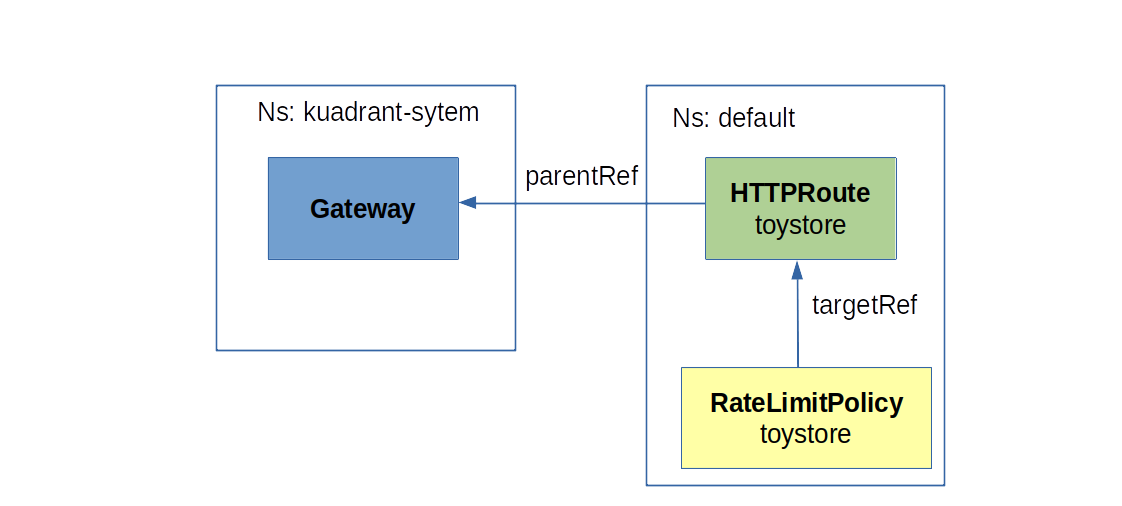

Create a Kuadrant RateLimitPolicy to configure rate limiting:

kubectl apply -f - <<EOF
apiVersion: kuadrant.io/v1
kind: RateLimitPolicy
metadata:
  name: toystore
spec:
  targetRef:
    group: gateway.networking.k8s.io
    kind: HTTPRoute
    name: toystore
    sectionName: rule-2
  limits:
    "create-toy":
      rates:

      - limit: 5
        window: 10s
      when:
      - predicate: "request.method == 'POST'"
EOF

Note: It may take a couple of minutes for the RateLimitPolicy to be applied depending on your cluster.

Verify the rate limiting works by sending requests in a loop.

Up to 5 successful (200 OK) requests every 10 seconds to POST /toys, then 429 Too Many Requests:

while :; do curl --write-out '%{http_code}\n' --silent --output /dev/null -H 'Host: api.toystore.com' http://$KUADRANT_GATEWAY_URL/toys -X POST | grep -E --color "\b(429)\b|$"; sleep 1; done

Unlimited successful (200 OK) to GET /toys:

while :; do curl --write-out '%{http_code}\n' --silent --output /dev/null -H 'Host: api.toystore.com' http://$KUADRANT_GATEWAY_URL/toys | grep -E --color "\b(429)\b|$"; sleep 1; done
